I am beyond excited to finally be able to announce a new version of ggraph. This release, like the ggforce 0.3.0 release, has been many years in the making, laying dormant for long periods first waiting for ggplot2 to get updated and then waiting for me to have time to finally finish it off. All that is in the past now as ggraph 2.0.0 has finally landed on CRAN, filled with numerous new features, a massive amount of bug fixes, and a slew of breaking changes.
If you are new to ggraph, a short description follows: It is an extension of ggplot2 that implement an extended grammar for relational data (e.g. trees and networks). It provides a huge variety of geoms for drawing nodes and edges, along with an assortment of layouts making it possible to produce a very wide range of network visualization types. It is to my knowledge the most feature packed network visualization framework available in R (and potentially in other languages as well), all building on top of the familiar ggplot2 API. If you want to learn more I invite you to browse the new pkgdown website that has been made available.
Before we begin with the exiting new stuff, there’s a small change that may or
may not greet you as you make your first new plot with ggraph v2.0.0. The
default look of a ggplot is often not a good fit for network visualisations as
the positional scales are irrelevant. Because of this ggraph has since its
release offered a
theme_graph() that removed a lot of the useless clutter such
as axes and grid lines. You had to use it deliberately though as I didn’t want
to overwrite any defaults you may have had. In the new release I’ve relaxed on
this a bit. When you construct a ggraph plot it will still use the default theme
as a base, but it will remove axes and gridlines from it. This makes it easier
to use it together with coorporate templates and the likes right out the box.
You can still use
theme_graph(), or potentially set it as a default using
set_graph_style() if you so wish.
library(ggraph) # THe new default look: ggraph(highschool) + geom_edge_link() + geom_node_point()
# Using theme_graph for the remainder of this post set_graph_style(size = 11, plot_margin = margin(0, 0, 0, 0))
The broken giraffe
Let us start proper with what this release breaks, because it does it for some very good reasons and you’ll all be happy about it shortly as you read on. The 1.x.x versions of ggraph worked with two different types of network representations: igraph objects and dendrogram object. Some further types such as hclust and network objects were supported by automatic conversion, but that was it. Further, the internal architecture meant that certain layouts and geoms could only be used with certain objects. This was obviously an imperfect situation and one that reflected that tidygraph was developed after ggraph. In ggraph 2.0.0 the internals have been rewritten to only be based on tidygraph. This means that all layouts and geoms will always be available (as long as the topology supports it). This doesn’t mean that igraph, dendrogram, network, and hclust objects are no longer supported, though. Every input will be attempted to be coerced to a tbl_graph object, and as tidygraph supports a wealth of network representations, ggraph can now be used with an even wider selection of objects, all completely without any need for change from the user.
While this change was completely internal and thus didn’t break anything, it did
put in to question the API of the
ggraph() function, which had been designed
before tidy evaluation and tidygraph came into existence. Prior to 2.0.0 all
layout arguments passed into
create_layout()) would be passed
as strings if they referenced any node or edge property, e.g.
library(tidygraph) graph <- as_tbl_graph( data.frame( from = sample(5, 20, TRUE), to = sample(5, 20, TRUE), weight = runif(20) ) )
ggraph(graph, layout = 'fr', weights = "weight") + geom_edge_link() + geom_node_point()
With the new API, edge and node parameters are passed along as unquoted expressions that will be evaluated in the context of the edge or node data respectively. The example above will this be:
ggraph(graph, layout = 'fr', weights = weight) + geom_edge_link() + geom_node_point()
This change might seem superficial and unnecessary until you realize that this means the network object doesn’t have to be updated every time you want to try new edge and node parameters for the layout:
ggraph(graph, layout = 'fr', weights = sqrt(weight)) + geom_edge_link() + geom_node_point()
So, that’s the extent of the breakage… Now what does this change allow..?
The use of tidygraph runs much deeper than simply being used as the internal network representation. ggraph will also register the network object during creation and rendering of the plot, meaning that all tidygraph algorithms are available as input to layout specs and aesthetic mappings:

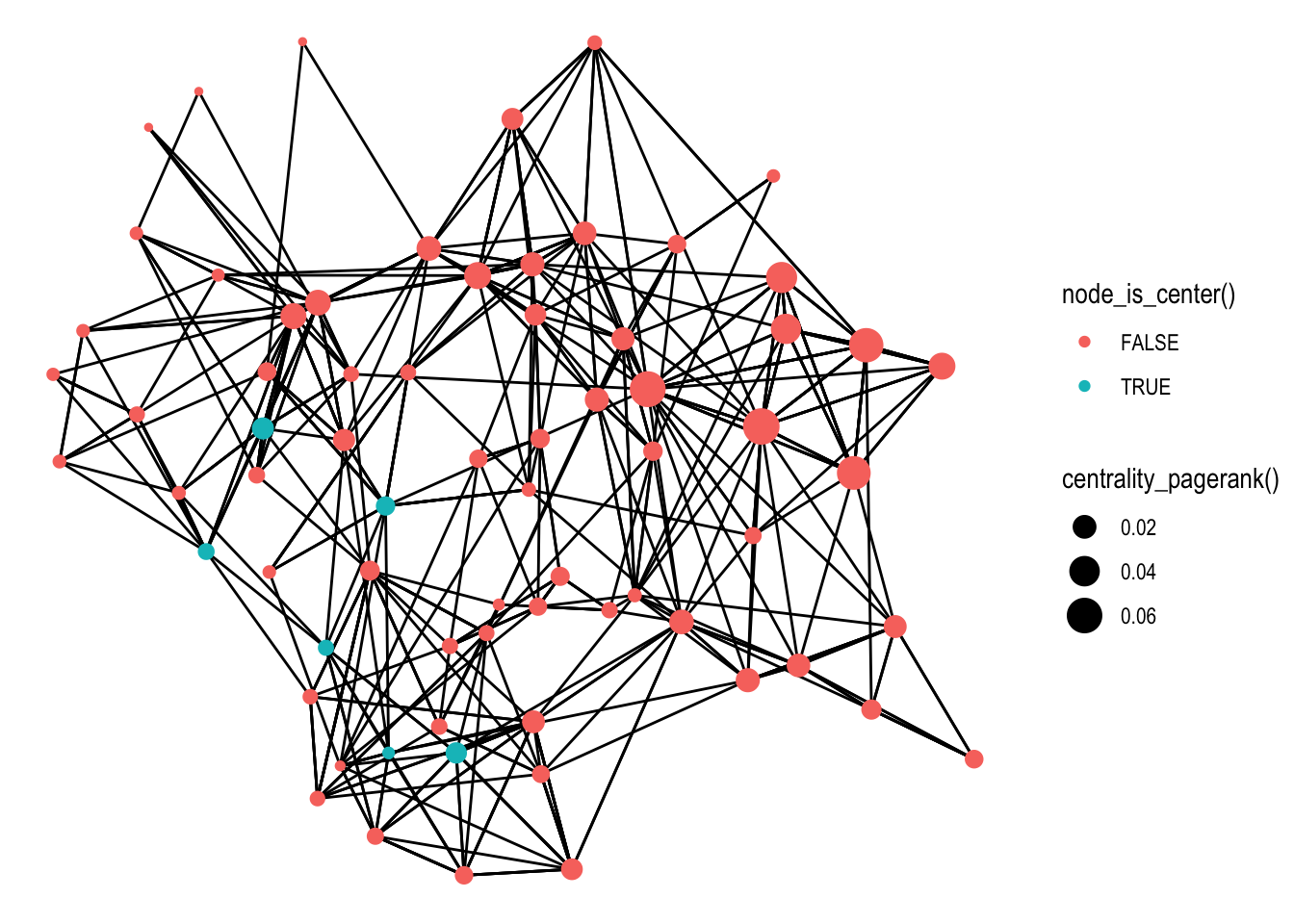

graph <- as_tbl_graph(highschool) ggraph(graph, layout = 'fr', weights = centrality_edge_betweenness()) + geom_edge_link() + geom_node_point(aes(size = centrality_pagerank(), colour = node_is_center()))
It is obvious (at least to me) that this new-found capability will make it much easier to experiment and iterate on the visualization, hopefully inspiring users to try out different settings before settling on a plot.
As discussed above, the tidygraph integration also makes it easy to plot a wide
variety of data types directly. Above we first create a tbl_graph from the
highschool edge-list, but that is strictly not necessary:
## from to year ## 1 1 14 1957 ## 2 1 15 1957 ## 3 1 21 1957 ## 4 1 54 1957 ## 5 1 55 1957 ## 6 2 21 1957
ggraph(highschool, layout = 'kk') + geom_edge_link() + geom_node_point()
Note that even though the input is not a tbl_graph it will be converted to one so all the tidygraph algorithms are still available during plotting.
To further make it easy to quickly gain an overview over your network data,
ggraph gains a
qgraph() function that inspects you input and automatically
picks a layout and combination of edge and node geoms. While the return type is
a standard ggraph/ggplot object it should not really be used as the basis for
a more complicated plot as you have no influence over how the layout and first
couple of layers are chosen.
iris_clust <- hclust(dist(iris[, 1:4])) qgraph(iris_clust)
ggraph 2.0.0 comes with a huge selection of new layouts, from new algorithms for
the classic node-edge diagram to completely new types such as matrix and
(bio)fabric layouts. The biggest addition comes from the integration of the
graphlayouts package by
David Schoch who has done a tremendous job
in bringing new, high quality, layout algorithms to R. The
is the new default as it does a much better job than fruchterman-reingold
'fr'). It also includes a sparse version
'sparse_stress' for large graphs
that are much faster than any of the ones provided by igraph.
# Defaults to stress, with a message ggraph(graph) + geom_edge_link() + geom_node_point()
## Using `stress` as default layout
There are other layouts from graphlayouts of interest, e.g. the
layout that emphasize community structure, the
'focus' layout that places all
nodes in concentric circle based on their distance to a selected node etc. I
wont show them all here but instead direct you to its
github page that describes all
its different layouts.
Another type of layout that has become available is the unrooted equal-angle and
equal-daylight algorithms for drawing unrooted trees. This type of trees are
different than those resulting from e.g. hierarchical clustering in that they
do not contain direction or a specific root node. The tree structure is only
given by the branch length. To support this the
'dendrogram' layout has gained
a length argument that allows the layout to be calculated from branch length:
library(ape) data(bird.families) # Using the bird.orders dataset from ape ggraph(bird.families, 'dendrogram', length = length) + geom_edge_elbow()
Often the dendrogram layout is a bad choice for unrooted trees, as it
implicitly shows a node as the root and draw everything else according to that.
Instead one can choose the
'unrooted' layout where leafs are attempted
evenly spread across the plane.
ggraph(bird.families, 'unrooted', length = length) + geom_edge_link()
By default the equal-daylight algorithm is used but it is possible to also get
the simpler, but less well-dispersed equal-angle version as well by setting
daylight = FALSE.
The new version also brings two new special layouts (special meaning
'fabric', which, like the
brings their own edge and node geoms. The matrix layout places nodes on a
diagonal and shows edges by placing points at the horizontal and vertical
intersection of the terminal nodes. The selling point of this layout is that it
scales better as there is no possibility of edge crossings. On the other hand
is matrix layouts very dependent on the order in which nodes are placed, and as
the network growth so does the possible ordering of nodes. There exist however
a large range of node ranking algorithm that can be used to provide an effective
ordering and many of these are available in tidygraph. It can take some time
getting used to matrix plots but once you begin to recognize patterns in the
plot and how it links to certain topological features of the network, they can
become quite effective tools:
# Create a graph where internal edges in communities are grouped graph <- create_notable('zachary') %>% mutate(group = factor(group_infomap())) %>% morph(to_split, group) %>% activate(edges) %>% mutate(edge_group = as.character(.N()$group)) %>% unmorph()
## Warning: `as_quosure()` requires an explicit environment as of rlang 0.3.0. ## Please supply `env`. ## This warning is displayed once per session.
ggraph(graph, 'matrix', sort.by = node_rank_hclust()) + geom_edge_point(aes(colour = edge_group), mirror = TRUE) + coord_fixed()
As can be seen in the example above it is often useful to mirror edges to both
sides of the diagonal to make the patterns stronger. Highly connected nodes are
easily recognizable, without suffering from over-plotting, and by choosing an
appropriate ranking algorithm communities are easily visible. In addition to
gemo_edge_point() ggraph also provides
geom_edge_tile() for a different
The fabric layout (originally called biofabric, but I have decided to drop the prefix to indicate it can be used generally), is another layout approach that tries to deal with the problems of over-plotting. It does so by drawing all edges as evenly spaced vertical lines, and all nodes as evenly spaced horizontal lines. As with the matrix layout it is highly dependent on the sorting of nodes, and requires some getting used to. I urge you to give it a chance though, potentially with some help from the website its inventor has set up:
ggraph(graph, 'fabric', sort.by = node_rank_fabric()) + geom_node_range(aes(colour = group), alpha = 0.3) + geom_edge_span(aes(colour = edge_group), end_shape = 'circle') + coord_fixed() + theme(legend.position = 'top')
node_rank_fabric() is the ranking proposed in the original paper, but
other ranking algorithms are of course also possible.
The last new feature in the layout department is that it is now easier to plug
in new layouts. First, by providing a matrix or data.frame to the
ggraph() you can quickly provide a fixed position of the nodes.
The same can be obtained by providing an
y argument to the
Second, you can provide a function directly to the
layout argument. The
function must take a tbl_graph as input and return a data.frame or an object
coercible to one. This means that e.g. layouts defined as physics simulations
with the particles package can be used directly:
library(particles) # Set up simulation sim <- . %>% simulate() %>% wield(manybody_force) %>% wield(link_force) %>% evolve() ggraph(graph, sim) + geom_edge_link(colour = 'grey') + geom_node_point(aes(colour = group), size = 3)
Geoms for the people
While ggraph has always included quite a large range of different geoms for
showing nodes and edges, this release has managed to add some more. Most
geom_edge_fan() has gained a brother in crime for showing
geom_edge_parallel() will draw edges as straight lines but, in
the case of multi-edges, will offset them slightly orthogonal to its direction
so that there is no overlap. This is a geom best suited for smaller graphs
(IMO), but here it can add a very classic look to the plot:
small_graph <- create_notable('bull') %>% convert(to_directed) %>% bind_edges(data.frame(from = c(1, 2, 5, 3), to = c(2, 1, 3, 2))) ggraph(small_graph, 'stress') + geom_edge_parallel(end_cap = circle(.5), start_cap = circle(.5), arrow = arrow(length = unit(1, 'mm'), type = 'closed')) + geom_node_point(size = 4)
For this edge geom in particular it is often a good idea to use capping to let them end before they reaches the terminal nodes.
Another edge geom that has become available is
geom_edge_bend() which is sort
of an organic elbow geom:
ggraph(iris_clust, 'dendrogram', height = height) + geom_edge_bend()
Lastly, in addition to the node and edge geoms shown in the Layout section,
geom_node_voronoi() has been added. It is a ggraph specific version of
ggforce::geom_voronoi_tile() that allows you to create a Voronoi tessellation
of the nodes and use the resulting tiles to show the nodes. As with the ggforce
version it is possible to constrain the tiles to a specific radius around the
edge making it a great way of showing which nodes dominates certain areas
without any problems with over-plotting.
ggraph(graph, 'stress') + geom_node_voronoi(aes(fill = group), max.radius = 0.5, colour = 'white') + geom_edge_link() + geom_node_point()
A last little thing pertaining to edge geoms is that many have gained a
strength argument, which controls their level of non-linearity (this is
obviously only available for non-linear edges). Setting
strength = 0 will
result in a linear edge, while setting
strength = 1 will give the standard
look. Everything in between is fair game, while everything outside that range
will look exceptionally weird, probably.
ggraph(iris_clust, 'dendrogram', height = height) + geom_edge_bend(alpha = 0.3) + geom_edge_bend(strength = 0.5, alpha = 0.3) + geom_edge_bend(strength = 0.2, alpha = 0.3)
ggraph(iris_clust, 'dendrogram', height = height) + geom_edge_elbow(alpha = 0.3) + geom_edge_elbow(strength = 0.5, alpha = 0.3) + geom_edge_elbow(strength = 0.2, alpha = 0.3)
A few geoms have had arguments such as
spread that have had
similar purpose, but those arguments have been deprecated in favor of the same
argument across all (applicable) geoms.
And then one more last thing, but it is really not something new in ggraph. As
you can use standard geoms for drawing nodes some of the new features in ggforce
is of particular interest to ggraph users. The
geom_mark_*() family in
particular is great for annotating single, or groups of nodes, and going forward
it will be the advised approach:
library(ggforce) ggraph(graph, 'stress') + geom_edge_link() + geom_node_point() + geom_mark_ellipse(aes(x, y, label = 'Group 3', description = 'A very special collection of nodes', filter = group == 3))
All the rest
These are the exiting new stuff, but the release also includes numerous bug fixes and small tweaks… Far to many to be interesting to list, so you must take my work for it 😄.
As with ggforce I hope that ggraph never goes this long without a release again. Feel free to flood me with feature request after you have played with the new version and I’ll do my best to take them on.
I’ll spend some time on ggplot2 and grid for now, but still plan on taking a development sprint with patchwork with the intend of getting it on CRAN before the end of this year.
